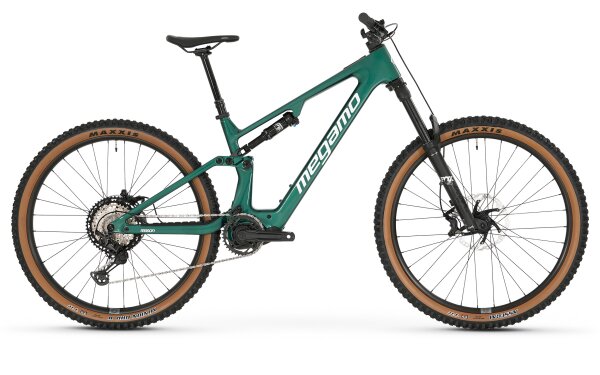

Technische Details
-
frame: Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
-
fork: FOX 36 Float AWL HD, 160 mm Travel, Rail 2.0, Sweep-Adjust, Kabolt Axle 110, 1.5 Tapered, 44mm offset
-
fork-suspension-travel: 160
-
rear-shock: FOX Float Rhythm, 210x55 mm, Evol LV + 2 Position Lever, Low Speed Rebound
-
rear-shock-suspension-travel: 160
-
gear system: Shimano XT M8100, Shadow Plus 12-Speed
-
shift-levers: Shimano XT 8100, 12-Speed
-
number of hears: 12
-
brakes: Shimano Deore M6200, SM-RT66 203 mm
-
Wheelset: Megamo 29 SL 30 ASY, Aluminium Rim, 15x110/12x148 mm
-
tires: Maxxis Assegai 29x2.5 EXO+ 3C MaxxTerra / Maxxis Minion DHR II 29x2.4 EXO+ 3C MaxxTerra
-
handlebar: Megamo AL, 35 x 800 x 12 mm
-
Stem: Satori New Ursa,35 x 35 mm
-
saddle: Fizik Terra Aidon X5, 145 mm
-
crankset: Avinox Chainring 36T 12-Speed, Crankset 160mm
-
sprockets: Shimano XT M8100, 10-51T
-
motor: Avinox M2S, 130Nm, 1500W
-
battery: Avinox 800 Wh
-
display: Avinox DP100
-
charger: Avinox 4A
-
stack: 617
-
reach: 442
-
seat-tube-length: 400
-
seat-tube-angle: 77
-
top-tube-length: 584
-
head-tube-lenght: 100
-
head-tube-angle: 63.5
-
wheelbase: 1233
-
chainstay-length: 450
-
bottom-bracket-height: 348
-
bottom-bracket-drop: 30
